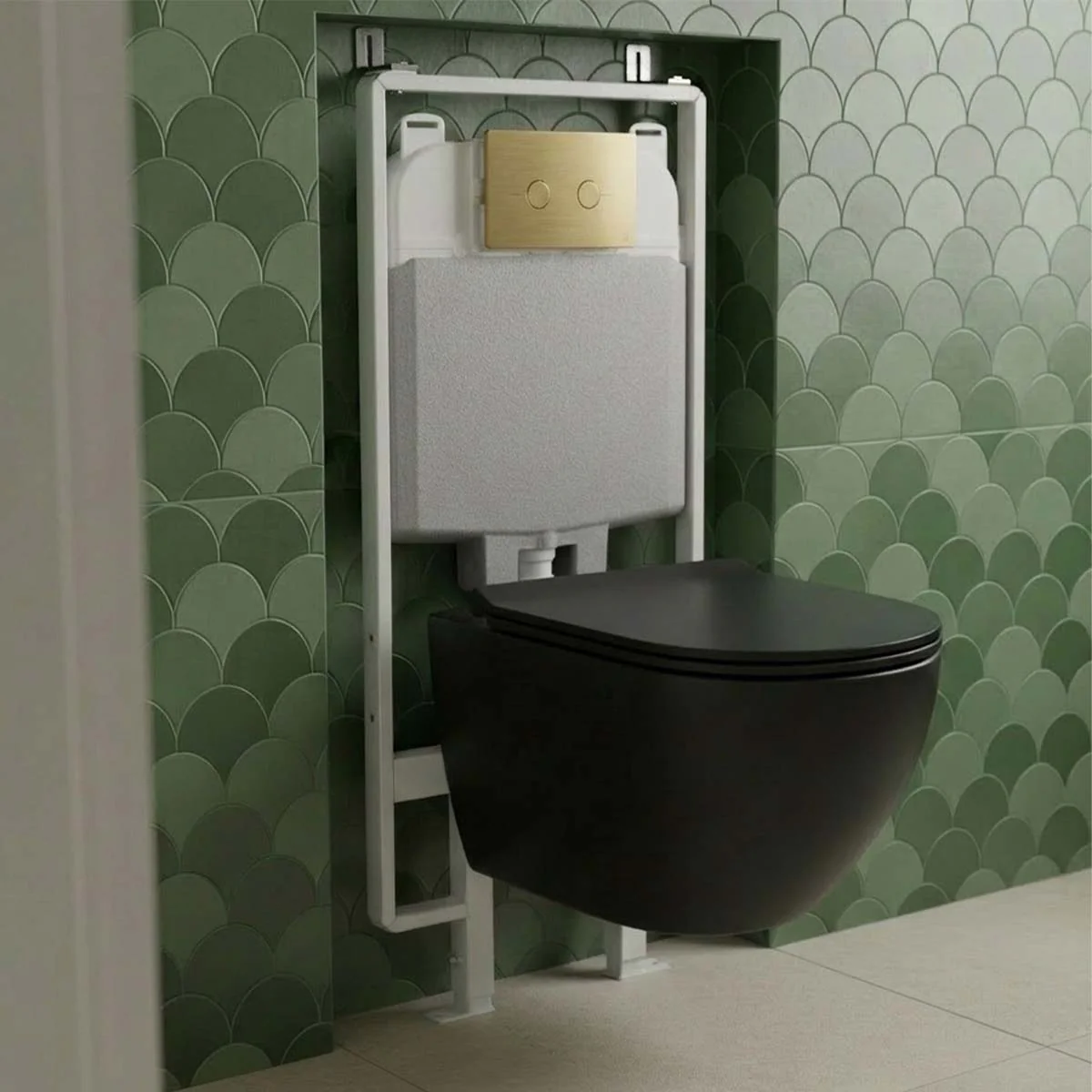

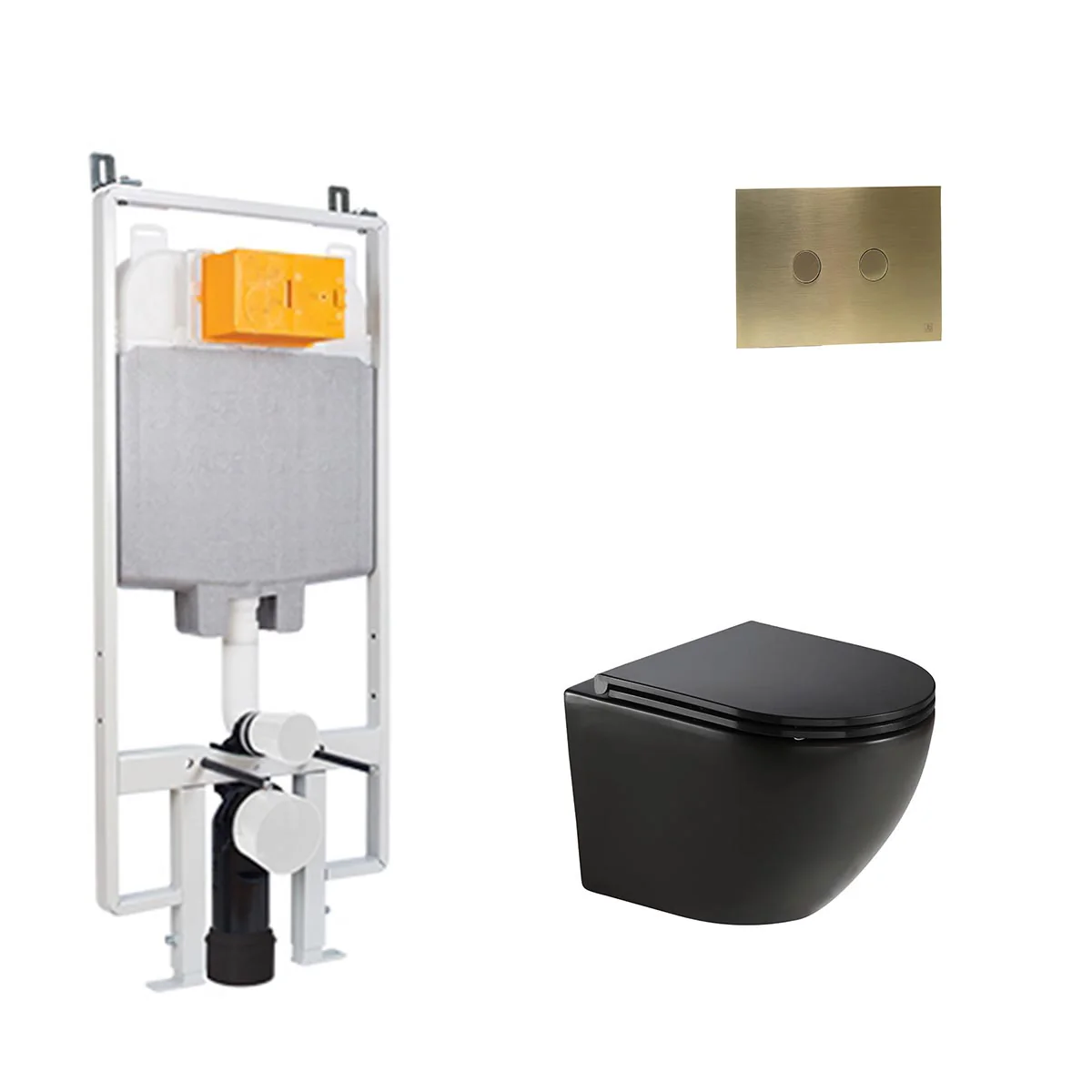

Modern toilet system engineered for pre-wall bathroom installations, comprising a slim 1.2 m floor-mounted W.C. frame, integrated concealed cistern, front-access gold flush plate and matt black D-shaped pan with seat.

The wall-hung pan is manufactured from porcelain to provide a dense, durable and non-porous surface suited to regular use and straightforward maintenance. Its D-shaped profile gives the unit a defined contemporary form, while the rimless bowl construction reduces internal areas where residue may collect. Tornado flush technology improves water flow distribution around the bowl for more effective rinsing performance. The rear outlet is arranged for connection within the concealed service zone, allowing pipework to remain hidden from view.

The slim 1200mm floor-mounted W.C frame is designed to provide stable structural support for the suspended pan within pre-wall installations. Its full-height, reduced-depth construction allows efficient use of installation space while accommodating the concealed cistern and associated service connections within the frame. Supplied brackets assist with accurate alignment and secure fixing, while the W.C. bend forms the connection between the pan outlet and the waste run.

The integrated concealed cistern incorporates a dual flush mechanism with 3 litre and 6 litre discharge volumes, enabling selection between reduced and full-volume flushing to support improved water efficiency during daily operation. Positioning the cistern behind the finished wall helps maintain a cleaner installation line while protecting internal operating components.

The brushed brass flush plate is designed exclusively for front installation and serves as the external operating interface for the cistern. Its rectangular faceplate incorporates two pneumatic push buttons for reliable and consistent actuation of the dual flush function. The access opening also allows inspection and maintenance of internal cistern components when required.

Once installed, only the pan and flush plate remain visible, creating a streamlined and integrated finish suited to contemporary residential, hospitality and commercial bathroom specifications.

Features & Benefits:

Wall Hung Toilet Pan:

• Modern D-shaped design
• Finished in matt black
• Made from durable porcelain
• Rimless bowl for simple cleaning
• Tornado flush for effective rinsing
• Rear outlet for concealed waste setup
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• Manufacturing guarantee of 2-year, extendable to 15 years on registration

Concealed Cistern & W.C. Frame:

• WRAS approved
• Pre-wall floorstanding frame
• Suitable for wall hung toilet installation
• Concealed cistern for a streamlined finish
• Includes brackets and W.C. bend
• 3L/6L dual flush cistern
• Can be fitted for front access
• Height: 1200mm
• Width: 500mm
• Includes a 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Dual-button design
• Brushed brass finish
• Pneumatic operation for dependable flushing
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
